CM-Cabinets Library User Guide
CabMasterPro contains all the End Panels and Fillers that you need to complement cabinets. A filler for cabinets is a narrow wood strip used to close gaps between cabinets and walls or appliances. They are essential for proper spacing, smooth door and drawer operation, and achieving a clean, built-in look compensating for uneven walls.
If the Internal Angle is 90deg, the Corner Fillers have the option to include an overlap of the panels, allowing for easier installation and assembly.
An overlap of front panels may be needed as no rooms are ever built square and errors could be made in measuring the room. This option therefore allows the corner filler to expand slightly to pick up any excess gap.
This option is also only applicable if the Reverse Front/Back is disabled.

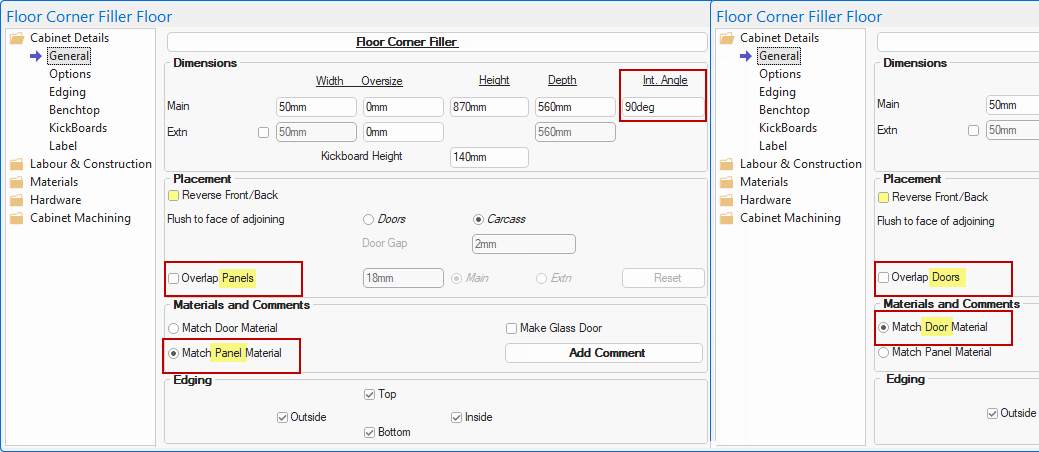

As shown below, the Placement description changes dependent on the Material selected.

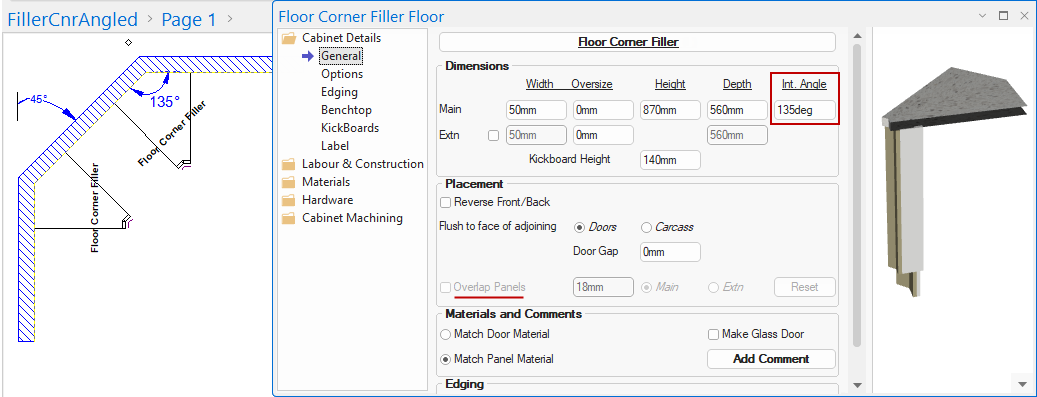

When installing cabinets on a 45-degree angled wall (or a corner that is not a standard 90 degrees), a void or gap between cabinets is typical and usually managed with filler panels, as shown here.
