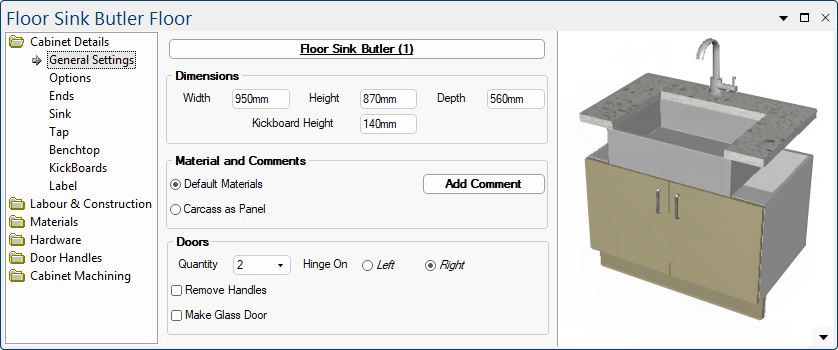

A butler sink unit refers to a sink, also known as a farmhouse sink or Belfast sink, with a deep basin and an exposed, flat front apron, traditionally made from durable fireclay or ceramic.

These large, rectangular sinks are known for their deep, spacious bowls, which are ideal for washing large pots, pans, and for general utility use. They are a popular choice for kitchens, laundries, and bathrooms and are available in various finishes, often complemented by matching cabinetry or bases that highlight their classic design.





Sink Panel

The Labour & Construction > Sink Panel page allows you to Include the front sink panel, shown below.

If the panel is required, as shown above, the ability to Extend Panel is available.

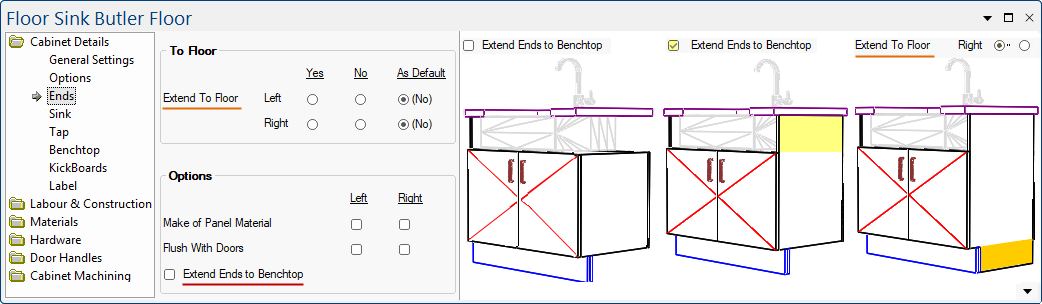

Extend Ends to Benchtop

This option is also located on Cabinet Details > Ends page.

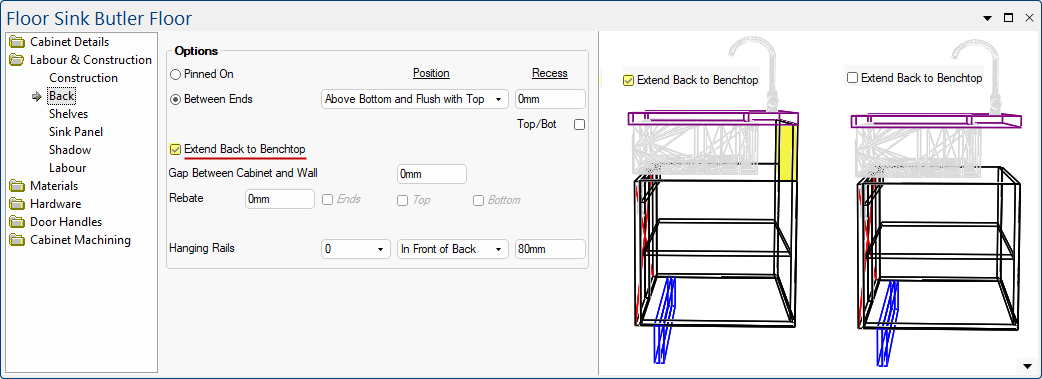

Extend Back to Benchtop

This option is also located on Cabinet Details > Ends page.



Tap Models

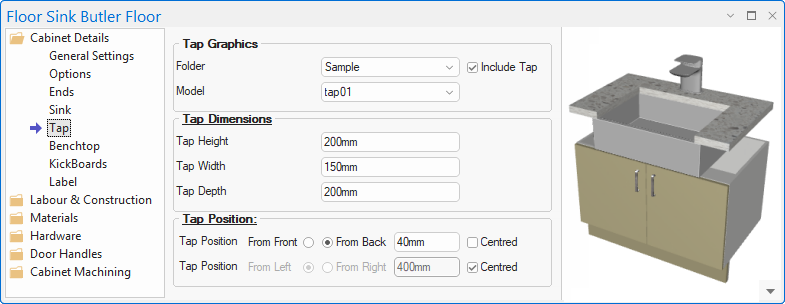

Tap Graphics can be added to the sink on the Cabinet Details > Tap page using the Folder and Model drop lists.

The dimensions and position of the tap can be customised.

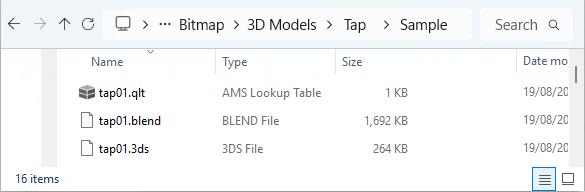

Models already included with CabMasterPro are located in the <your CabMaster>/Bitmap/3D Models/Tap/Sample folder.

Sink Models

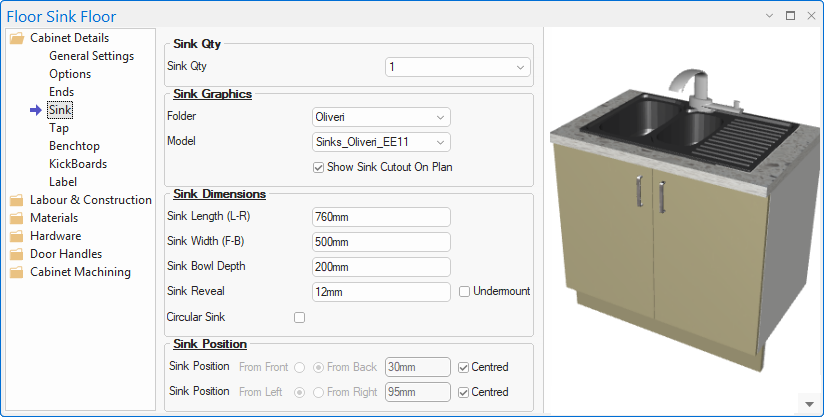

Sink quantity and graphics can be added on the Cabinet Details > Sink page using the Folder and Model drop lists.

The dimensions and position of the sink can be customised.

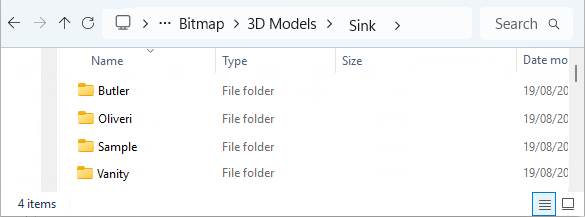

There are a number of models already included with CabMasterPro located in the <your CabMaster>/Bitmap/3D Models/Sink folder.
