The Cabinet Property sheet provides the ability to customise individual cabinets, thereby overriding Catalog/Drawing Property defaults which will immediately apply any changes you make to the selected cabinet/object, and the only way to close them is to use the close  button.

Cabinets have a property inspector which is divided into...

• Categories (broken up into logical groups) e.g. Cabinet Details, Labour & Construction, Cabinet Machining etc
  • each category contains Pages e.g. General Settings, Ends, Sink, Tap etc
    • each page contains related options e.g. Width, Height, Depth etc

How do I open Cabinet Properties?

After placement i.e. when cabinet/object is already placed on drawing or list.

• use the right click menu command 'Format...' or double click on placed cabinet/object.

Property sheets are displayed with a light grey background, as shown, and a preview on the cabinet/item will automatically update as option changes are made.

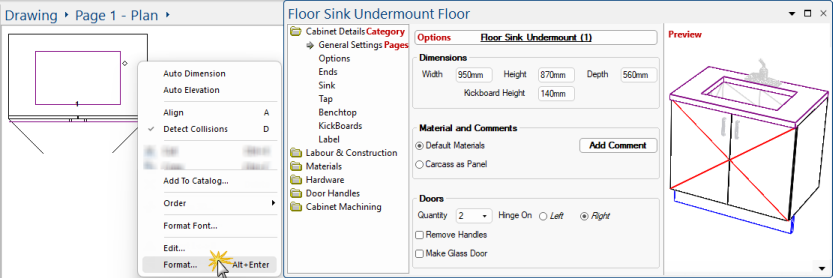

Cabinet Properties - Opened by using menu option or double clicking on placed cabinet

Before placement i.e. customise a selected cabinet before adding to drawing or list.

• Select cabinet and then click on the Cabinet Tool button, located on Home tab (click on image).

Located on Home tab  -  Click to Expand

Property sheets are displayed with a blue background, as shown.

Drawer Cabinet Properties - Opened using Cabinet Tool

Is there a quicker way of modifying cabinets?

A Quick Access Sidebar can be enabled which allows you to make minor modifications quickly to all cabinets and other items on the plan without opening the cabinet properties.
