Cabinet Benchtop Material

In This Topic

The benchtop material defaults are set on the Materials-Advanced > Benchtop page of the Drawing properties.

Typically, the initial setup of the materials for a new job, would be set up on the Job Setup > Materials page.

The various Reset and Reset : Material buttons can be used to revert any amendments back to the settings in the Drawing Properties.

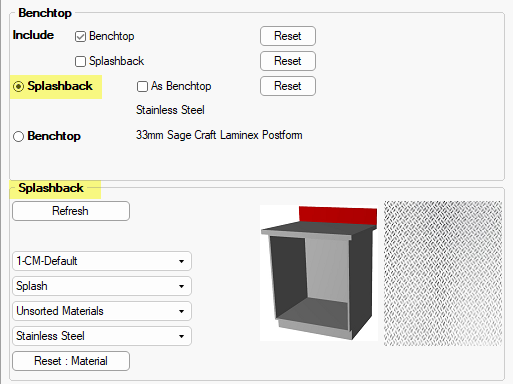

Radio buttons are used to select either the Splashback or Benchtop material.

When selected, the heading (highlighted) automatically changes upon selection as confirmation of material details made available for amendment.

Material Selection & Set All

The Material drop lists can be used to amend the material.

DataSource - this example, 1-CM-Default
Material Type - this example, Splash
Material Group - this example, Unsorted Materials
Material Name - this example, Stainless Steel

The colour of material is displayed.

A kitchen splashback is a sheet of glass, acrylic, stainless steel or tiles attached to the wall to protect and prevent your wall from any spillages, grease stains or water marks. They are most commonly placed behind your hob or kitchen sink but can be placed anywhere.
