CM-Cabinets Library User Guide
The Floor Multi Cabinet is similar to the Universal Cabinet with customisable sections of the cabinet but it is easier to use.
Before you begin, you need to select the number of divisions you want your Floor Multi Cabinet to have on the Cabinet Details > Settings page.
These divisions are referred to as Area 1, Area 2, etc. and related pages, shown under the Cabinet Details category, are made available to allow each Area to be configured.
Standard configurations for each area are displayed as pictures. Simply click on the picture that best represents what you want to achieve.
The following examples shows a cabinet with (1) no divisions selected and has only 1 empty area and (2) doors added to the void.
Example 1 : Void - 0 Door
This cabinet has only 1 area which is empty (void).
Click to Expand
Example 2 : Doors added
This example shows a simple 2 doors on top with 1 door below.
Click to Expand

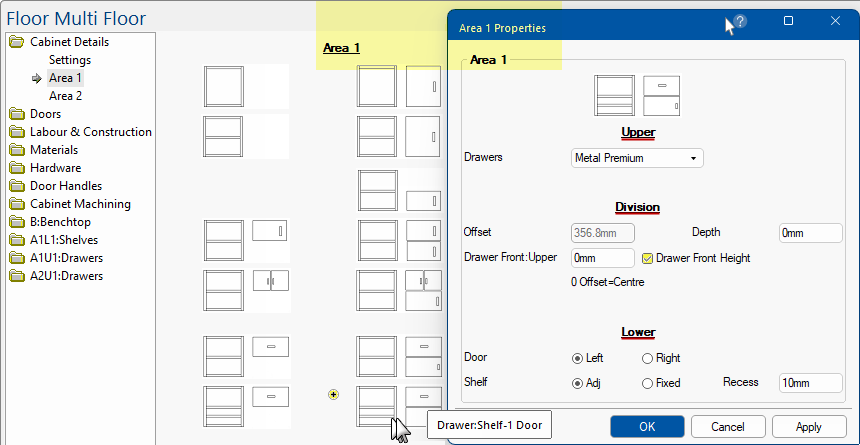

To view Area Properties just double-click on the configuration option you are using, as shown below. These basic settings include:-
When an area includes drawers and shelves, new categories will appear in the same manner as for Universal cabinets e.g. A1L1 etc. Here you can make more detailed adjustments to each area of the Floor Multi Cabinet, including materials, hardware, rails and more.
For more details on available options refer to:-
Watch the video to see how quickly and easily you can design your Floor Multi cabinet. (0:29mins)
