Bin drawer runners are available for use with bin configurations in Single, Double and Quad, displayed in 3D for a visual representation.

Include Bins using Runner Editor

The Runner Editor can be accessed from the Drawing Properties on...

• the Hardware > Managers page




  Hardware > Managers page  -  Click to Expand




     or

• the Hardware > Drawers page - click on image to view.
  • Clicking on the related Runner Set Edit button, as shown, will open the Runner Editor.


Runners Properties opened from the Hardware > Drawers page  -  Click to view

     or any other place where previously the table could be edited.

Set Default Runner Group

For these to work you need to ensure that the Default Runner Group is consistent with the type of bin required.

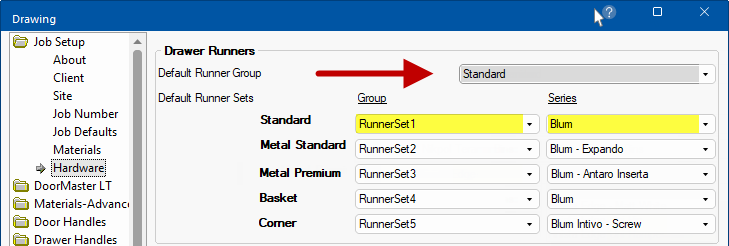

For this example, we are going to set the Default Runner Group to Standard and leave the Group and Series as shown.

Drawer Configuration

Bin drawers are available in Single, Double and Quad bin configurations.

To enable this you will need to open the Runner Editor (as explained above) and...

1. locate the correct drawer runner for use with a bin;
   • if you want to change an existing runner for use with a bin, do this at this stage.

Open the Runner Editor

Open the Runner Editor (as explained above) and ensure you have

• the correct Group selected (e.g. Standard)
• the correct Folder selected (e.g. Blum)
• and the required Drawer Runner for use with a bin
  • in this example we will simply selected the 'Blum 230ME Single Extn 25kg' and duplicated the table with the description 'bin' added
    • The file name must be unique.

Duplicating a Runner Table (Optional)

The Runner Editor is not provided to create new tables, just to override the settings in existing ones. You can however duplicate of an original table and rename it i.e. create a new based on table.

CabMaster Software™ distributes most of the runner tables. However, customers are allowed to tweak them using the runner editor, as tweaked tables are written to a separate override file thereby preserving the original.

To preserve the Original Table but designate another based on table as a bin, you can Duplicate a Runner Table as we do here to create a 'Blum 230ME Single Extn 25kg Bin' runner table for selection (which we will later designate as a double bin).

To do this, use the  View Original Table  button to open a existing (original) table and save it as a new based on table.

Open the Runner Editor and select a ....

• Group (e.g. Standard);
• Folder (e.g. Blum); and
• Drawer Runner that you want to duplicate (e.g. original table Blum 230ME Single Extn 25kg) and rename.
  • we will duplicate this and rename the new based on table to use with a bin drawer runner.
    • in this example, we will simply add the word 'Bin' to the description but you could create multiple based on table runners i.e. a single bin, a double bin and/or a quad bin.
• Click on the View Original Table button.
  • Click Yes to the warning message, as we are not changing the original table.

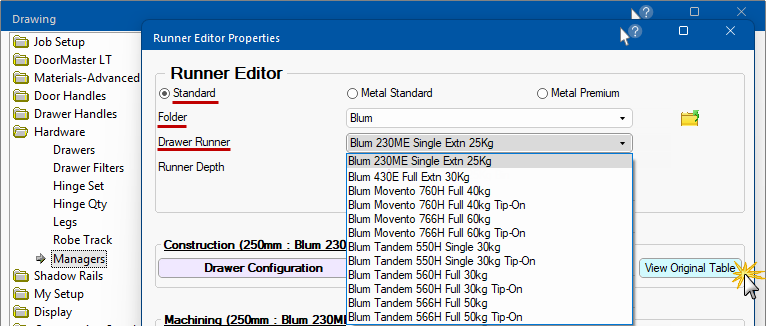

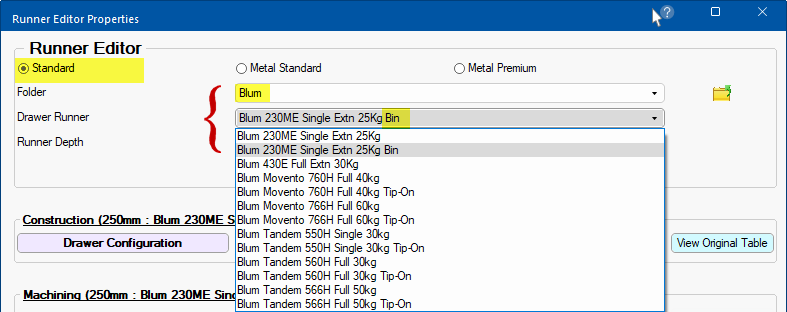

Example of Runner Editor Properties and above selection criteria

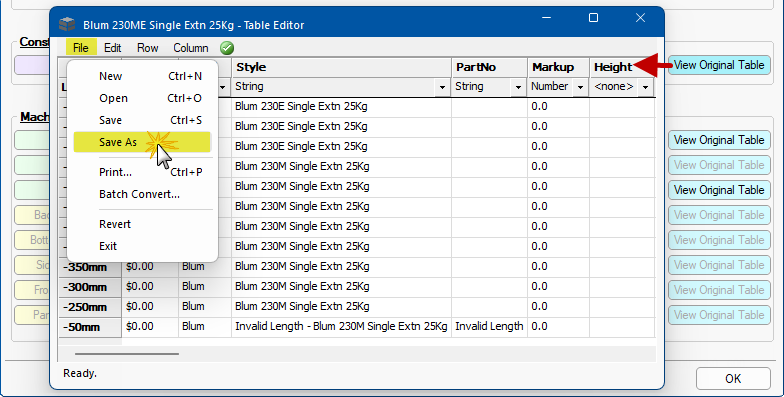

• When the table is opened (as shown here) select Save As from the File menu.



• Now rename the based on runner file.
  • It is recommended to retain the main file name and add an additional description.
    • In this example we are simply adding the word 'Bin' to the end of the original file name - see following example.
• Click Save

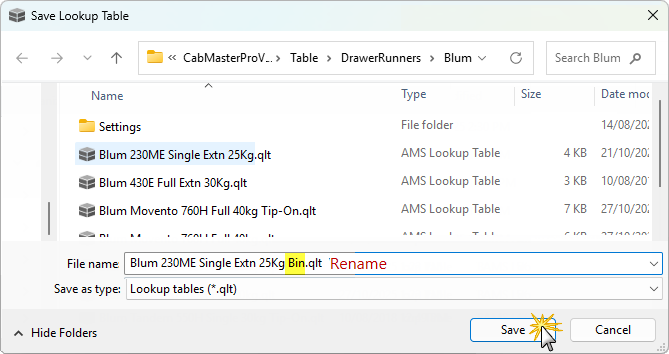

Example of renaming and saving the based on table

In this example, the main file name has been retained and the word 'Bin' added.

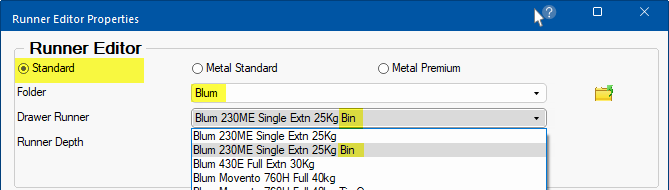

• Now you can select the based on runner table that you created from the drop list, as shown.





• In some instances you may need to add a column to the newly created file.

Adding a Table Column (optional)

As we are using a based on table for our bin, this table can safely be edited. For example, you can add a column which is not reflected in our original table.

The naming convention must be adhered to, which is dependent on the Drawer Runner Group - see topic on Standard Editor Options, Metal Standard Editor Options and/or Metal Premium Editor Options.

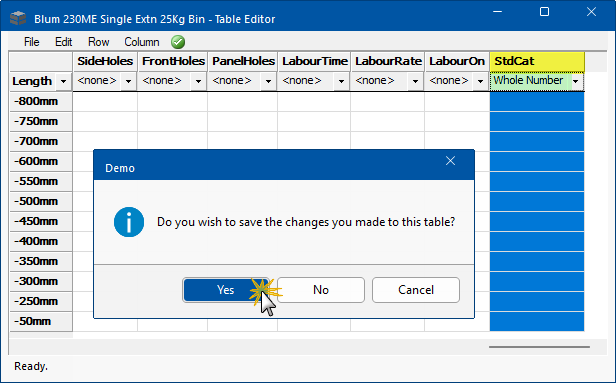

Example of adding a column called StdCat

From the Column menu, select the Add command. An edit box will be presented where you can manually type in the column name.

A new column will be added, as shown, normally added to the end. Use the drop list to make the column a 'Whole Number'.

• The order of columns is not important - see Notes on Original Table Columns.

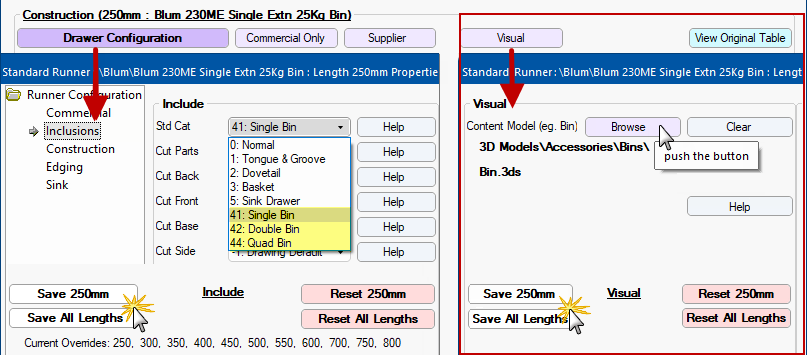

• Now press the Drawer Configuration button and go to the Inclusions page, as shown.
  • Set the Std Cat value using the drop list for a single, double or quad bin.
  • Save the changes.




Visual / Content Model

• Press the Visual button if you want to associate a model.
  •  The model used for the Bin is either a...
    • 'Bin Model' associated with the runner system, as per the above example i.e. Bins.3ds
      or
    • system default model.

Extra possible columns in drawer runner tables "ContentModelFolder" and "ContentModelFile" can be used to define a model for the drawer content.

Cabinet Details

Bin drawers are available in Single, Double and Quad bin configurations.

• On the Cabinet Details > Drawers page ensure you are using the correct Drawer Runner.

Finista Edge

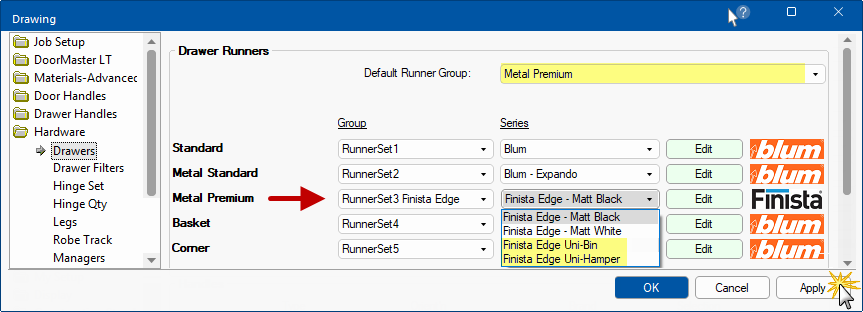

1. Set Default Runner Group and select required Group and Series, as per the following example. Ensure you 'Apply' changes before exiting.
   This can be done on either the Job Setup > Hardware page or, as shown below, on the Hardware > Drawers page of the Drawing Properties.



   Uni-Bins and Uni-Hampers must be used with the Finista Edge 174mm drawer only. Uni-Hamper has option of single and double bins.



2. On the Cabinet Details > Drawers page select the bin required.



Nikpol Teramo

1. Set Default Runner Group default for this example to 'Metal Premium' as this will be applied to all drawers (without bins) on the drawing.
2. Then select the required Groupand Series, as per the following example. Ensure you 'Apply' changes before exiting.
   This can be done on either the Job Setup > Hardware page or, as shown below, on the Hardware > Drawers page of the Drawing Properties.

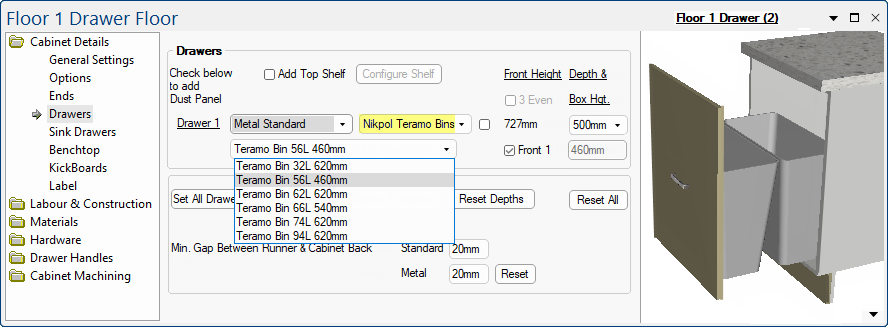

3. On the Cabinet Details > Drawers page select the bin required.
   • here we changed the Runner Group to Metal Standard, to allow the selection of Nikpol Teramo bins.

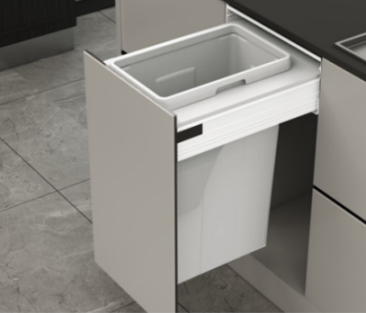

   • Nikpol Termo has 2 bin and 4 bins (94L) options.



Example of Plan with multiple drawer cabinets

The example drawing has two single drawer cabinets placed.

As shown above, the second drawer (2) has been changed to Metal Standard for the Runner Group, to allow the selection of a 'Bin' drawer.

The first cabinet (#1) has Metal Premium drawer runners, which are the default Runner Group applied to all drawers without bins on the drawing.
