CM-Cabinets Library User Guide
End panels are a decorative panel placed on an exposed end of a base or wall cabinet.
The end panel finishes off the exposed end and integrates it with the rest of the cabinetry. So you need to decide how you want to construct your ends.
As shown in the following examples, provided options are dependent on the type of cabinet.
See also discussions on Wall Microwave cabinets e.g. Wall Microwave 2 and Wall RH Microwave and other topics listed below.
Remove Ends

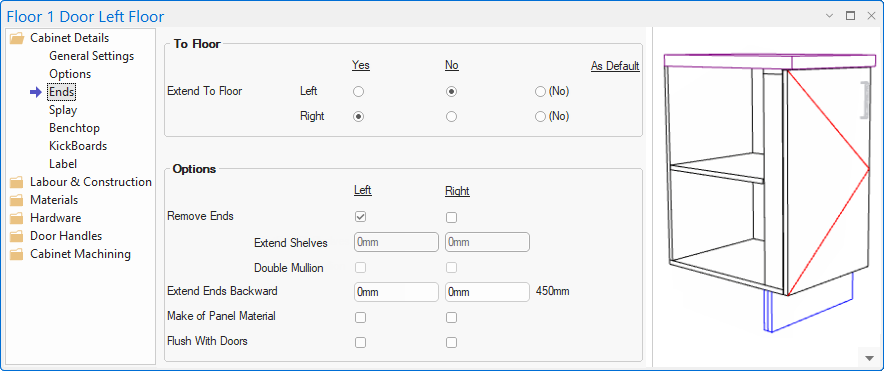

This example shows the Left End removed on a Floor 1 Door cabinet.
Mullions
Mullions are the partial divisions that are added as an extra surface to hinge a door, whenever there is not a carcass end or full division to attach the door to.
The mullion width, if the cabinet has a mullion, can be overridden at Cabinet level on the Labour & Construction > Construction page.
Setting the position and how the mullions are machined are done on the Mach. Shelf/Mullion > Mullions page.
Options for Tall cabinets do not allow the removal of ends, shelf extension or mullion control but are otherwise the same as Floor cabinets.

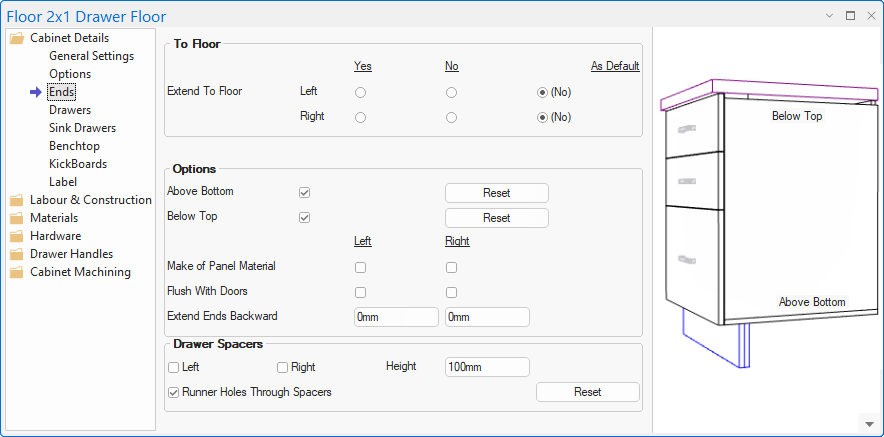

Options for Drawer cabinets allows for Above Bottom and Below Top (as shown) and Drawer Spacers control.
